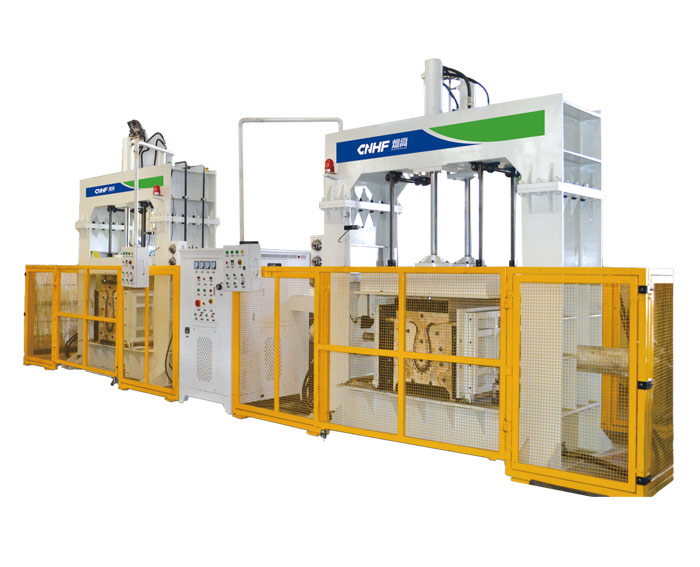

One-drive-two HF(RF) Hot Press Machine For Wood Bengding & Forming(Three-direction)

The high frequency hot press machine series make full use of wooden mould, which fall into a pattern with high frequency heating, and widely used in the field of musical instrument

This machine sells to Italy, Egypt, Russia, Canada, Argentina, Turkey, Bengal, Indonesia, India, Malaysia.
Product Description

The high frequency hot press machine series make full use of wooden mould, which fall into a pattern with high frequency heating, and widely used in the field of musical instrument, shoes industry, decoration, forestry industry and so on. Besides, our company manufacture various non-standard equipment in accordance with your requirement.


Features:

Easy operation, uniform heating, and prompt forming.

Adopt wood mould, suitable for various innovation.

One-direction, three-direction and multi-direction hydraulic press combined flexibly, meets different requirements.

One high frequency generator can share multiple hot presses.

Small working area and low labor intensity.

Environmental protection, no boiler, ash free and smog free.

Safety protective screening meeting the European and North America standard is additionally installed to ensure safety and reliability.


TypeCGYJ-160SⅡ
Vertical pressure (t)80
Horizontal pressure (t)40×2
Size of upper and lower workbench (mm)1500×1200
Size of the side workbench (mm)700×1200
Max.range between upper and lower workbench (mm)1500
Max.range between Left and right workbench (mm)1600
Total pressure (t)160
Hydraulic station One-drive-two
High frequency oscillatory power (kw)30
Vertical oil cylinder stroke (mm)700
Horizontal oil cylinder stroke (mm)500

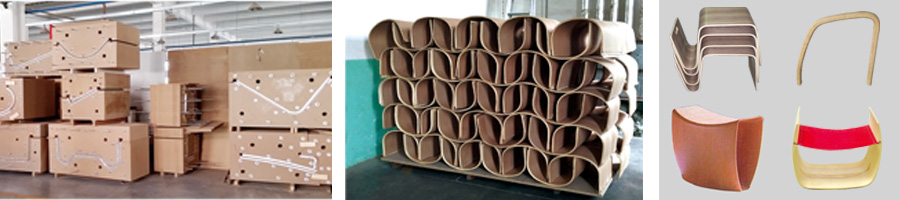

Application:

Bend wood armrest, bend wood shelf, teapot, bamboo tread, and panel furniture headboard, box spring, drawer, arc door.

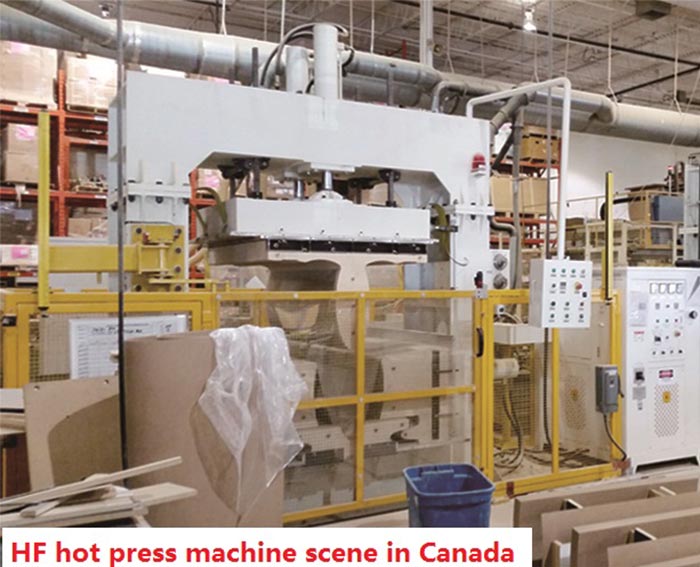

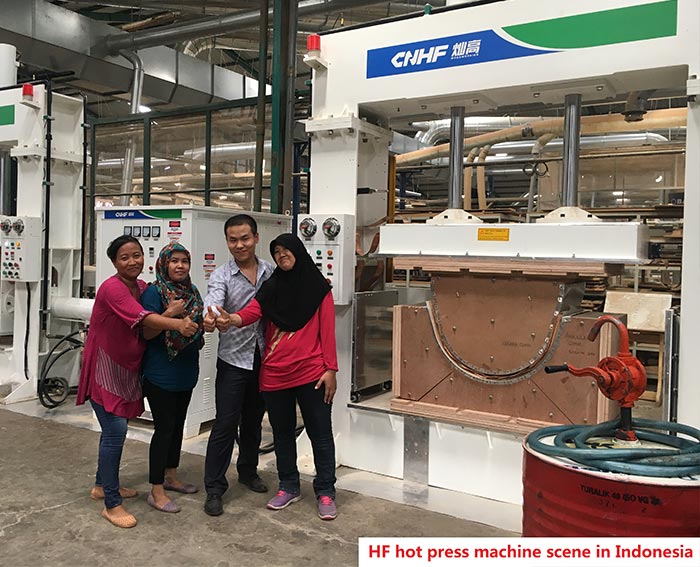

Customers Scene

One-drive-two HF(RF) Hot Press Machine For Wood Bengding

Product Video

QuanYou Furniture is the biggest panel furniture in China. They use our HF hot press machine for wood bending and forming more than 100 sets, then the production efficiency of bending parts is improved by 90 times. IKEA is the biggest furniture company in the world. They use our HF hot press machine for wood bending and forming that greatly improve the production efficiency.
