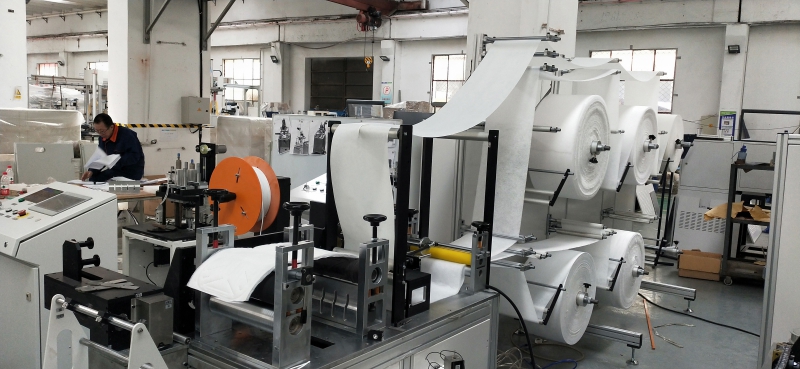

KN95 (N95) Face Mask Making Machine

Inquire Now Next Product

Product Description

Main Technical Specification

Type
Power	3KW	Weight	1500KG
Control Scheme	PLC、touch screen、servo motor	Machine size(mm)	Overall dimension：595015002000Weight：1220KGBelt conveyor dimension ：11504501100 Weight：25KGMask beater ：150016001550 Weight：700KGDimensions of conveyor frame ：31009102000 Weight：：500KG
Production speed	120pcs/min	Finished product size	KN95、N95
Air pressure	0.5～0.7MPa	Ultrasonic frequency	15KHz

Major component configuration

Servo motor： Taida/Hui Chuan

Ultrasonic： Make by ourselves

Pneumatic: YADEC

Stepper Motor: Hollysys

Function description of each section of equipment

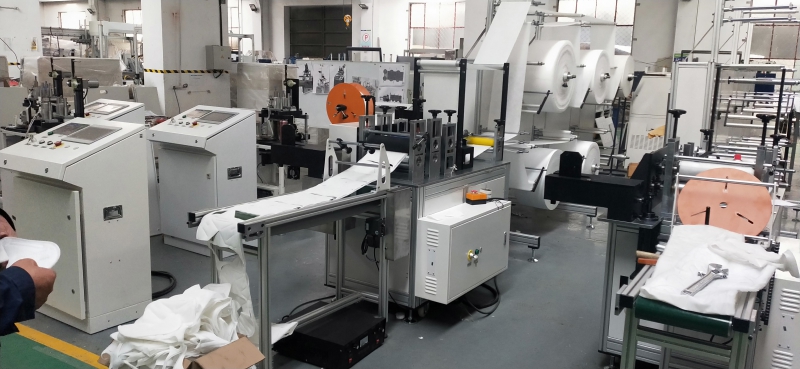

Producing process	Feeding rack → feeding nose bar → welding nose bar and mask forming → slicing

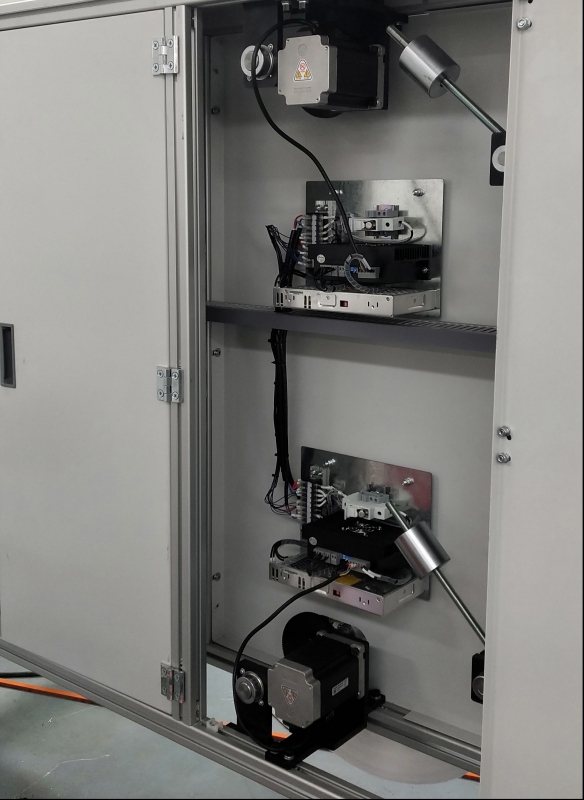

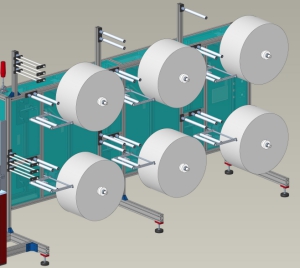

Feeding rack ，stepper motor put material

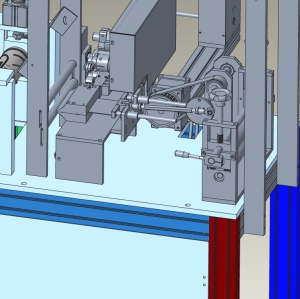

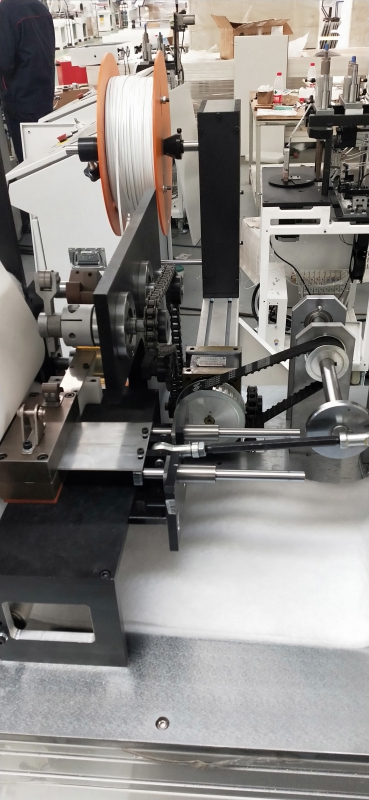

feeding nose bar( Inside nose bar)

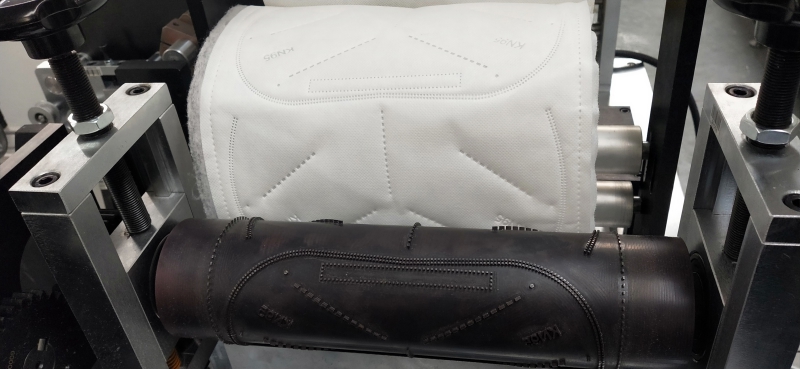

welding nose bar and mask forming

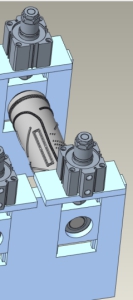

slicing
