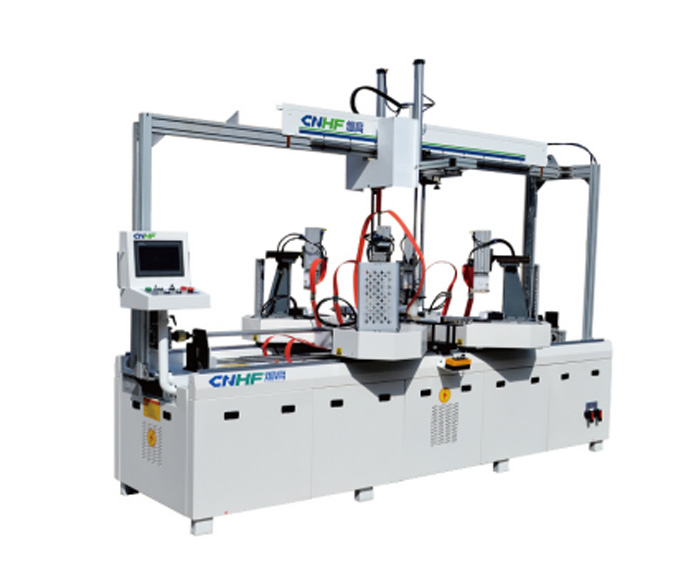

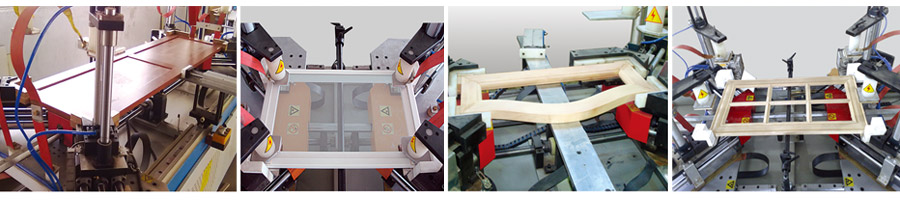

This machine is suitable for fast assembling of all kinds of woooden frame, with or without tenon, such as closet door, cabinet door, furniture frame assembly, drawer, mirror frame, and picture frame, which adopts high frequency power heating, four-angle pressurized mode.
This machine is suitable for fast assembling of all kinds of woooden frame, with or without tenon, such as closet door, cabinet door, furniture frame assembly, drawer, mirror frame, and picture frame, which adopts high frequency power heating, four-angle pressurized mode.
High speed: Glue is solidified in 2-20 seconds, and it can operate on the assembly line.
Saving labor: It saves a lot of time for loading and checking, and operate without fixtures.
High quality: No need to use staple gun and improved subsequent procedures, the glue can be solidified under high pressure.
Low cost: A frame only costs about 0.003-0.04 KWh.
Convenience: It adopts touch screen of human-machine interface, easy change the dimension automatically, PlC automatically control, all data can display on touch screen, including pressure, current, heating time and cooling time, etc.
| Type | CGZK-1200×800 | CGZK-2000×800 | CGZK-2800×800 | CGZK-2800×1000 | CGZK-3400×1200 |
| Max.working size(mm) | 1200×800 | 2000×800 | 2800×800 | 2800×1000 | 3400×1200 |
| Min.working size(mm) | 80×80 | 130×130 | 130×130 | 130×130 | 200×200 |
| Pressurizing mode | Precision lead screw | ||||
| Overall dimension(mm) | 2100(L)×1270(W)×1750(H) | 2900(L)×1270(W)×1900(H) | 3700(L)×1270(W)×2100(H) | 3700(L)×1480(W)×2100(H) | 4150(L)×1820(W)×1850(H) |
| Weight(t) | 0.8 | 1.5 | 2 | 2.2 | 2.5 |
Dalian MeiSen is one of the largest American cabinet manufacturers in China. They use dozens of our HF universal wooden frame joining machines, then more than 200 containers of cabinets are produced every month.
