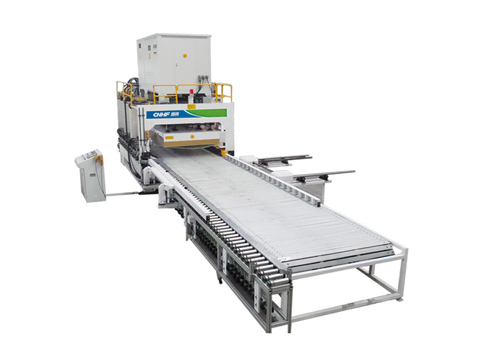

Why Choose a Wooden Board Joining Machine?

The plate-splicing machine is one of the popular plate-splicing machines used in the production of materials for villas and wooden houses and the manufacture of solid wood furniture. The seams of the plywood are precise, the plates are flat after splicing, and the equipment is equipped with an automatic pressure filling device, which can effectively eliminate the cracking caused by the pressure of the plywood is not in place. The whole fuselage is of engineering steel structure, stable and reliable.

Equipment performance of joiner board machine

The side pressure of the hydraulic plate splicing machine is composed of a pressing plate and an oil cylinder. The semi-automatic plate splicing machine ensures the alignment of the workpiece on the side when working. After the workpiece is placed, it can be conveniently put into the pressing position by the feeding rack, and it can be discharged smoothly during unloading. The main pressing part of the hydraulic panel machine is composed of a push plate and an oil cylinder. When the workpiece is put into the pressing position, the manual reversing valve will be switched to the pressing position for pressing. The hydraulic system of the hydraulic plate-splicing machine is specially designed to meet the special needs due to the special requirements of the wooden house components for pressing.

The advantage of the joiner board machine

1. The plate-splicing machine adopts PLC automatic control with stable performance and convenient operation.

2. Reduce the technological process of the four-sided saw. The machine has cut the four sides of the board neatly in the assembling process, and no four-side saw equipment is needed.

3. The province covers an area of a large number of manual plate splicing machines and four-sided saw equipment.

4. One skilled worker can operate, saving manpower.

5. High efficiency, one working day (10 hours) can produce 500 boards, saving the characteristics of the plate splicing machine.

The use of carpentry board splicing machine

During use, glue should be applied to the assembled pieces (the glue effect will be better on both sides of the gluing surface), and the plates should be laid flat on the table according to the technical specifications. Push the manual valve, lower the pressure beam to hold the plate flat, clamp the plate with the split-plate clamp, reset the hand pull valve, release the plate upward pressure beam. Take out the plate to dry and repeat the steps to complete the batch jigsaw work. It is a kind of woodworking machinery equipment commonly used in the production of solid wood products to improve the yield of finished products and reduce labor intensity.

Maintenance and safety

1. Handle with care to prevent pinching

2. The glue and sundries adhered to the table should be cleaned in time.

3. After the plates are clamped, loosen the trigger of the gun in time to stop the pressure.

4. The screw rod of the plate clamp and the movable part of the pressure head should be regularly refueled.

5. Do not operate the equipment without learning the operating procedure.
