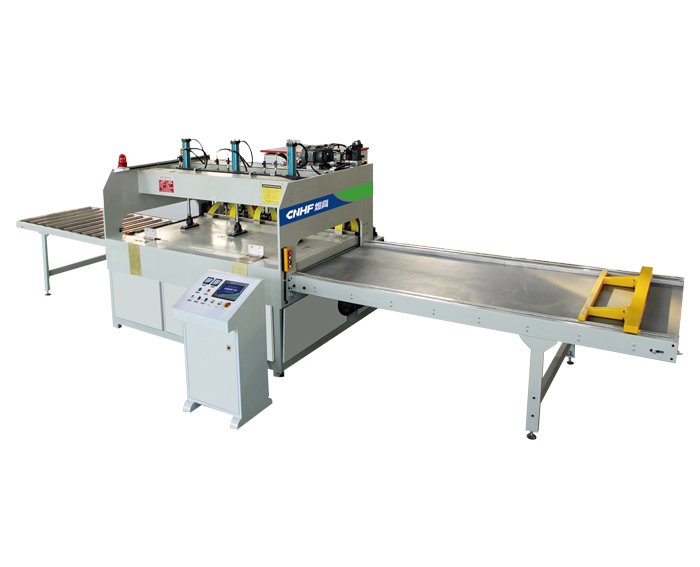

The oldest high frequency splicer models, the work table on the device for the flip-type pressure, the manufacturing cost is low

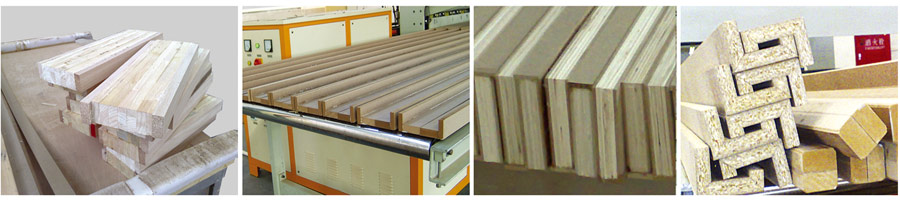

The oldest high frequency splicer models, the work table on the device for the flip-type pressure, the manufacturing cost is low, but the flatness of the puzzle is slightly poorer, applied for splicing of integrated board, door edge gluing, door pocket edge banding L door pocket assembly, splicing of door panel.
| Type | CGPB-35P | CGPB-48P | CGPB-70P |
| Workbench size (mm) | 2500×1300 | 2500×1300 | 2500×1300 |
| Splicing thickness (mm) | 10-50 | 10-80 | 10-150 |
| Upper pressure (t) | 10 | 10 | 10 |
| Back pressure (t) | 25 | 38 | 60 |
| Overall dimension (mm) | 8700(L)×4200(W)×2300(H) | 8700(L)×4200(W)×2300(H) | 8700(L)×4200(W)×2300(H) |
| Weight (t) | 4.0 | 5.5 | 7.0 |
| Feeding mode | Push type | Push type | Push type |
